SD3P-45B Type

For inspection of products contained in large boxes and bags, such as rice, wheat flour, and cereals, etc

SD3P-45B Type
For inspection of products contained in large boxes and bags, such as rice, wheat flour, and cereals, etc

It copes with conveyance of heavy items (20kg) On the conveyor.
*Conveyor belt easy attach and remove system is option.

Specifications

D (non-waterproof) / W (waterproof)

Model SD3P-XXXXBD/W
4505 4507 4509 4511 4514
Maximum passage width(mm) 450
Maximum passage height(mm) 50 70 90 110 140
Detection
sensitivity(mm)
Fe φ0.4 φ0.45 φ0.5 φ0.55 φ0.6
SUS
304
φ0.85 φ0.9 φ0.95 φ1.0 φ1.1
Conveyor speed 24m/min (50Hz)
Conveyor size 1200mm (length)×350mm (belt width)
Upon detection of metal Belt stopped, buzzer warning or automatic sorting (option)
Weight capacity 20kg(In the case of Three-phase AC200V, it is possible to cope under 30kg)
Operating environment Temperature: 0 to 40℃, Humidity: 30 to 75%, No dew condensation allowed.
Main power supply AC100V±10% / AC200V±10%, 50 / 60Hz, 350VA
or Three-phase AC200V±10%, 50 / 60Hz, 550VA(up to 30kg)
Model SD3P-XXXXBD/W
4517 4520 4525 4530 4535
Maximum passage width(mm) 450
Maximum passage height(mm) 170 200 250 300 350
Detection
sensitivity(mm)
Fe φ0.7 φ0.7 φ0.8 φ0.9 φ1.0
SUS
304
φ1.2 φ1.4 φ1.5 φ1.7 φ2.0
Conveyor speed 24m/min (50Hz)
Conveyor size 1200mm (length)×350mm (belt width)
Upon detection of metal Belt stopped, buzzer warning or automatic sorting (option)
Weight capacity 20kg(In the case of Three-phase AC200V, it is possible to cope under 30kg)
Operating environment Temperature: 0 to 40℃, Humidity: 30 to 75%, No dew condensation allowed.
Main power supply AC100V±10% / AC200V±10%, 50 / 60Hz, 350VA
or Three-phase AC200V±10%, 50 / 60Hz, 550VA(up to 30kg)

The detection sensitivity represent the values when only a test piece is fed over the belt surface.
The detection sensitivity depends on the product and/or operating environment.
Please make sure that something such as products are not going to hit the inside of the aperture.
The specifications are subject to change without prior notice due to improvement.

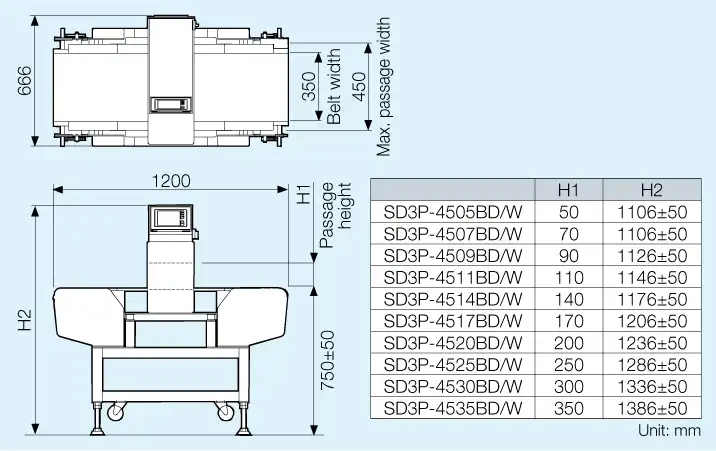

Appearance figure

Appearance figure SD3P-45BType
