Coils

Single coil size table

Coils

Example of transfer system

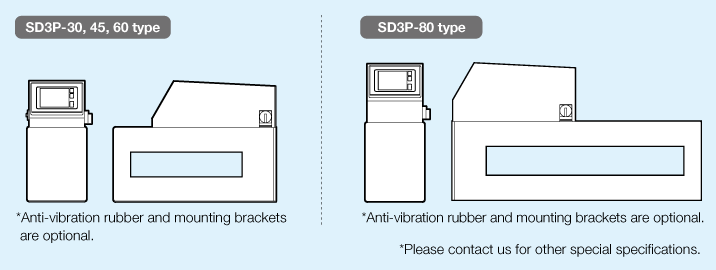

Appearance figure（SD3P-30・45・60 Type）

SD3P-30 3006 3008 3010 3012 3015 3018
A 480 481 501 521 551 581
B 185 185 185 185 185 185
C 296 296 316 336 366 396
D 108 98  98  98  98  98
E  80  100  120  140  170  200
F  67  67  67  67  67  67
G  300  300  300  300  300  300
H  141  141  141  141  141  141
I  508  508  508  508  508  508
J  236  236  236  236  236  236
K  53  53  53  53 53  53
L  328  328  328  328 328  328
M  127  127  127  127  127  127
N  36  36  36  36  36 36
O  164  164  164 164 164 164
P  53  53  53  53  53  53
Q  328  328  328  328  328  328
R  128 128  128  128  128  128
S  354  354  354  354  354  354
T  400  400  400  400  400  400
SD3P-45 4506 4508 4510 4512 4515 4518 4521 4527 4532
A  481  480  501  521  551 581  611  671  721
B  185  185  185  185  185 185  185  185  185
C  296  296  316  336  366 396 426  486  536
D  108  98  98  98  98 98  98  98  98
E  80  100  120  140  170 200  230  290  340
F  67  67  67  67  67 67  67  67  67
G 450 450  450 450 450 450  450  450  450
H  141  141  141  141  141 141  141  141  141
I 658 658 658 658 658 658 658  658  658
J  236  236  236  236  236 236  296  296  296
K  53  53  53  53 53 53  53  53  53
L 478 478 478 478 478 478 478  478  478
M  127  127  127  127  127 127  127  127  127
N  36  36  36  36  36 36 36  66  66
O  164  164  164 164 164 164 164  164  164
P  53  53  53  53  53 53  53  53  53
Q 478 478 478 478 478 478 478  478  478
R  128 128  128  128  128 128  128  128  128
S  354  354  354  354  354 354  354  354  354
T  400  400  400  400  400 400  400  400  400
SD3P-60 6005 6007 6009 6011 6014 6017 6020 6025 6030 6035
A  481  480  501  521  551 581  611  671  721 771
B  185  185  185  185  185 185  185  185  185 185
C  296  296  316  336  366 396 426  486  536 586
D  108  98  98  98  98 98  98  98  98 98
E  80  100  120  140  170 200  230  290  340 390
F  67  67  67  67  67 67  67  67  67 67
G 600 600 600 600 600 600 600 600  600 600
H  141  141  141  141  141 141  141  141  141 141
I 808 808 808 808 808 808 808 808 808 808
J  236  236  236  236  236 236  296  296  296 296
K 52 52 52 52 52 52 52 52 52 52
L 630 630 630 630 630 630 630 630 630 630
M 126 126 126 126 126 126 126 126 126 126
N  28 28 28  28 43 43 58 58 58 58
O 180 180 180 180 180 180 180 180 180 180
P 57 57 75 57 57 57 57 57 57 57
Q 620 620 620 620 620 620 620 620 620 620
R 132 132 132 132 132 132 132 132 132 132
S 415 415 415 415 415 415 415 415 415  415
T 465 465 465 465 465 465 465 465 465  465

please consult about a special size.

Appearance figure（SD3P-80 Type）

SD3P-80 8005 8007 8009 8011 8013 8016 8019 8025 8035
A 531  531 551  571  601 631  661  721  821
B  235  235  235 235 235 235 235 235 235
C  296  296  316  336  366 396 426  486  536
D  108  98  98  98  98 98  98  98  98
E  80  100  120  140  170 200  230  290 390
F  67  67  67  67  67 67  67  67  67
G 600 600 600 600 600 600 600 600  600
H  141  141  141  141  141 141  141  141  141
I 808 808 808 808 808 808 808 808 808
J  236  236  236  236  236 236  296  296  296
K 52 52 52 52 52 52 52 52 52
L 630 630 630 630 630 630 630 630 630
M 126 126 126 126 126 126 126 126 126
N  28 28 28  28 43 43 58 58 58
O 180 180 180 180 180 180 180 180 180
P 57 57 75 57 57 57 57 57 57
Q 620 620 620 620 620 620 620 620 620
R 132 132 132 132 132 132 132 132 132
S 415 415 415 415 415 415 415 415 415
T 465 465 465 465 465 465 465 465 465

please consult about a special size.

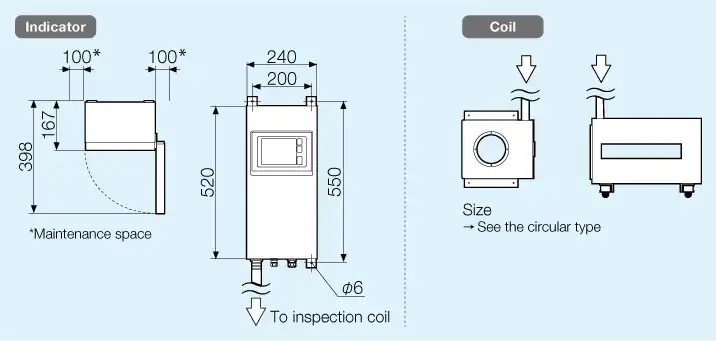

Separates type（Type with the indicator separated from the coil）
