Drop type metal detector

For inspection of rice, wheat flour, and plastic pellets, etc.

Drop type metal detector
For inspection of rice, wheat flour, and plastic pellets, etc.

This model is suitable for inspection of products that drop naturally.
Sorting machine is incorporated.
*Infeed hopper and machine feet are optional.

Specifications

Model SD3P-100CD/W-DF1710 SD3P-3008CD/W-DF3010
Maximum passage width(mm) φ87 82×282
Detection sensitivity(mm) Fe φ0.4 φ0.5
SUS304 φ0.7 φ1.0
Sorting method Integrated damper-type sorter
Air supply source 0.5~0.7MPa
Amount of processing (Reference value) Minute powder 2t/h
Soybean 4t/h
Minute powder 6t/h
Soybean 12t/h
Operating environment Temperature: 0 to 40℃, Humidity: 30 to 75%, No dew condensation allowed.
Main power supply AC100~240V±10%、50/60Hz、120VA
Weight(kg) 99 170

The detection sensitivity represent the values when only a test piece is fed over the belt surface.
The detection sensitivity depends on the product and/or operating environment.
Please make sure that something such as products are not going to hit the inside of the aperture.
The specifications are subject to change without prior notice due to improvement.

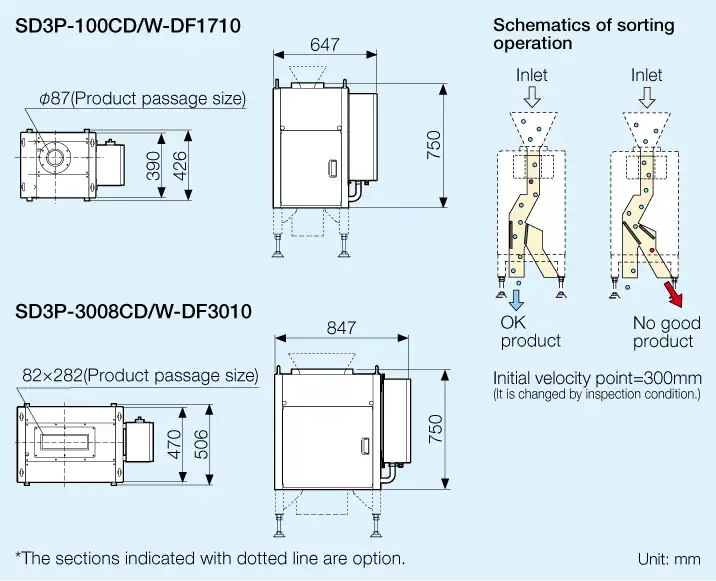

Appearance figure
