Product List

LINE UP
SD3P-30 Type For inspection of small products, such as confectionery bags

NEW SD3P-30 Type

For inspection of small products, such as confectionery bags

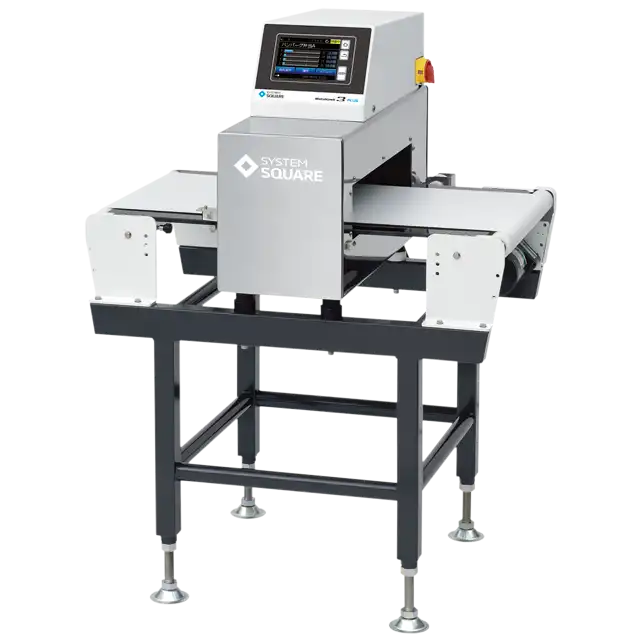

SD3P-45 Type For inspection of products packed in larger trays

NEW SD3P-45 Type

For inspection of products packed in larger trays
SD3P-45B Type For inspection of large bag products and large box products, such as grain

NEW SD3P-45B Type

For inspection of large bag products and large box products, such as grain
SD3P-60 Type For inspection of large bag products and large box products such as rice, flour, and grain

NEW SD3P-60 Type

For inspection of large bag products and large box products such as rice, flour, and grain

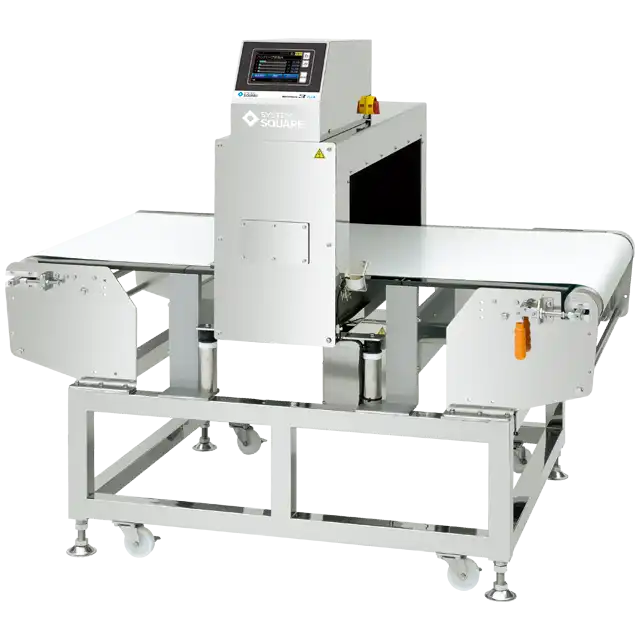

SD3P-80 Type For inspection of larger box and larger bag products

NEW SD3P-80 Type

For inspection of larger box and larger bag products

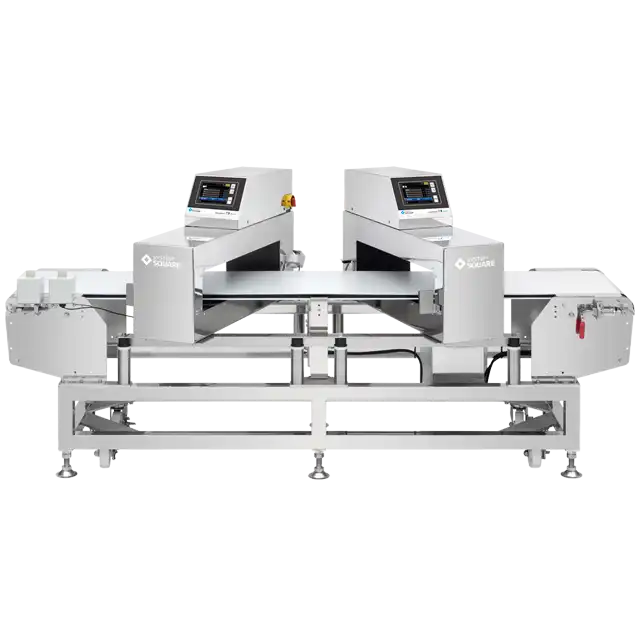

Metal detector for needles To detect needles in products such as meat.

NEW Metal detector for needles

To detect needles in products such as meat.

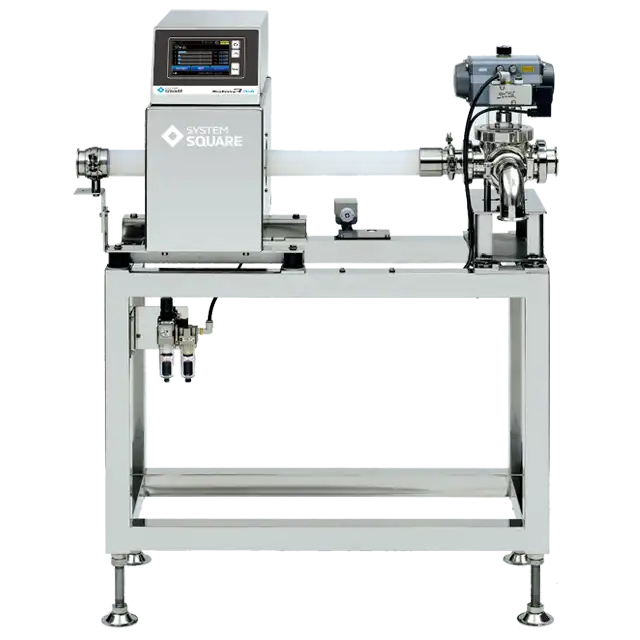

Pipe transfer type metal detector For inspection of liquid or jam products

NEW Pipe transfer type metal detector

For inspection of liquid or jam products

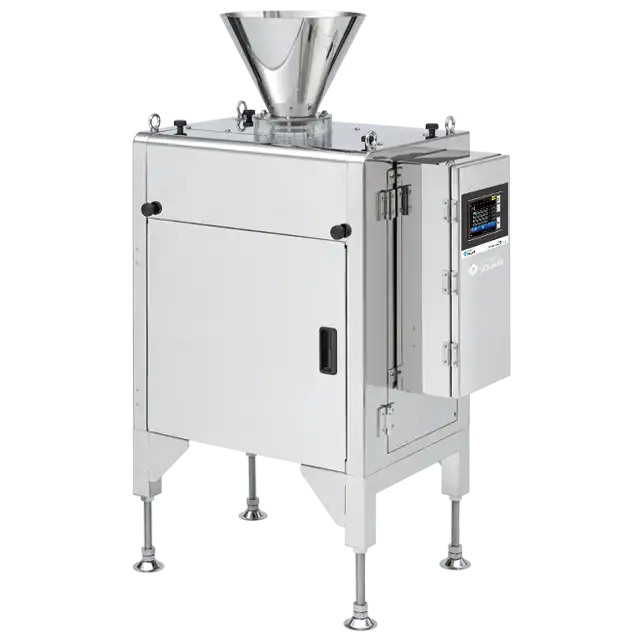

Drop type metal detector For inspection of grain and chip products *Sorting machine integrated type

NEW Drop type metal detector

For inspection of grain and chip products *Sorting machine integrated type

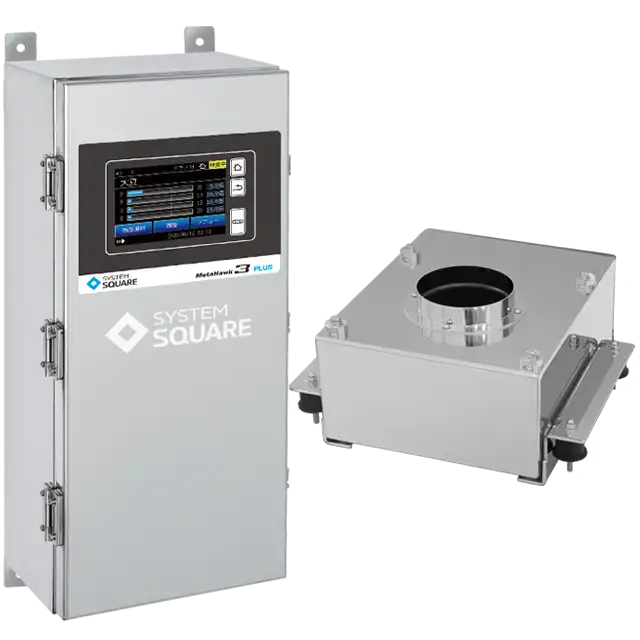

Circular type metal detector For inspection of grain and chip products before packing

NEW Circular type metal detector

For inspection of grain and chip products before packing

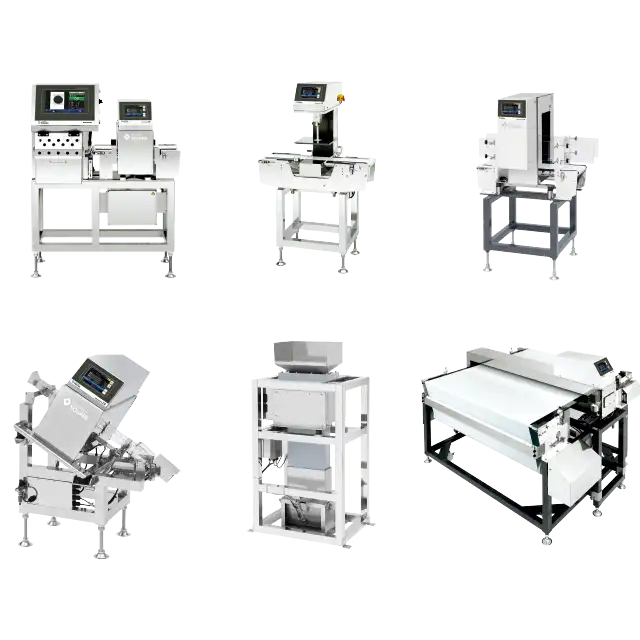

Special machines

Special machines

Various metal detectors suitable for applications
Coils

Coils

Single coil size table

Major Features

Friendly operability
New inspection E mode
Fulfilling history management functions
Simple structure to keep clean

Detailed Explanations

Easy operation

Color touch panel

large 5.7-inch color LCD

large 5.7-inch color LCD is equipped with a touch panel function. The large screen displays a variety of illustrations and function descriptions for easy understanding of operating procedures (first in the domestic industry).The touch panel allows easy machine settings by intuitive operation and ensures comfort of the use.

details_img02

Easy automatic sensitivity setting

This eliminates the difficulty of judging which inspection mode is most suitable for a specific product type.

details_img03

Comfortable operation with large touch panel LCD

details_img04

Contribute for reducing product loss by stable device operation

Strengthened resistance to a harmful outside noise New adoption to the coil of all models

The more sensitive, the more false alarms metal detector would have because of external noise. This new coil that has various improvements due to our lots expriences can provide stable and high sensitivity to users.

Strengthened resistance to a harmful outside noise New adoption to the coil of all models

New inspection "E mode" to the all models as a standard function Improve "practical sensitivity"

inspection by new algorithm uses the original digital signal processing technology that amplifies reaction of foreign object and decreases influence of the product to detect smaller one easily . It is especially effective to the products that contain much water or salt (such as pickles, ham, sausage, bean paste, etc.), that means they have strong influence to the coil.

details_img06

Keep inspection accuracy and balanced

Metal detector detects foreign object at the smallest point of the influence of the product. Being off from this inspection point is called unbalance, and it is one of the cause that decrease inspection accuracy. This metal detector does not become unbalance and enables stable operation for a long term.

details_img07

High sensitive 2-frequency

The 2-frequency inspection method makes it easier to detect ferrous and nonferrous metal. (System Square incorporated this technology into the mass-production machines world-first and now has more than 10 years experiences.)

2周波検査イメージ

Phase follow-up

The phase follow-up function prevents false alarm that could be caused by product shape, temperature, or change in the position of product inside the detection coil.

details_img09

To get better sensitivity

Proper inspection methods and having conditions fixed can keep sensitivity optimum.

To get better sensitivity

Extensive management functions

USB data management (option)

The inspection history data is transferred to PC for the management.(10,000 histories can be saved)

details_img11details_img12

Data management through network (option)

The data of multiple machines can be managed with PC through the LAN network.details_img13

Enhanced communication function

4 serial ports and  LAN port is available for communication between PC, labeler, bar code, printer, etc.

Access mode selection

Protect from incorrect settings by inexperienced operators. Pass word is required to change access mode.details_img14

Easy cleaning (HACCP compatibility)

Easy cleaning

One-touch detachment/attachment of the conveyors requiring the frequent cleaning ensures the sanitary system.

details_img15

Simple structure

Waterproofing model has simple frame structure made with stainless steel. It provides easy cleaning and high hygiene. Timing belt is located outside of frame, so that it never interferes transportation belt.

details_img16

The IP66 dust protection and waterproof standard is satisfied

The machine is capable of handling lines involved with water with sufficiently high sensitivity.It can be cleaned with water.

details_img17

Importance of the quality control increases further.

  • PL(Product Liability) When it is proven that the defect of the product has the casual relationship with the damage if the customer had the threat to life, personal injury, or property damage caused by the defect of the product, the manufacturer shall accept responsibility regardless of the intentional or negligent detect.
  • ISO(International Organization for Standardization) International standards to promote the distribution of goods and services. For example, there are quality assurance standard ISO9000 for the quality assurance management from the design phase to the after-sales service and environmental management standard ISO14001 for the production, service, and management.
  • HACCP(Hazard Analysis & Critical Control Point) Hazard that may occur in the food processing is analyzed (HA) and critical control point needing particular measures for the hazard is found (CCP). This point is monitored strictly to maintain the safety.
