Completely different from existing X-ray inspection systems! Innovative waterproof and dustproof function is achieved!
【 Completely waterproof 】
Operable in various environments
Overall system conforms to IP66. No cooler is needed and the system can be operated in a wide variety of environments.
Sealed cooling system is utilized
As the complete sealing is achieved, damages to the system units due to moisture or dust are reduced. The structure that can be operated more safely is achieved.
Comparison of waterproof range
Unlike previous models, systemic waterproof.
Compact design and low price
As the cooler does not need to be installed, more compact design and lower price are achieved.
Specifications
W (waterproof)
| Model | SX2-4074W |
|---|---|
| Dimension of inspection product *1 | Maximum passage width 390mm, Maximum passage height 150mm |
| Weight capacity | 5kg *2 |
| Conveyor speed | 15-45m/min *2 |
| Belt width | 420mm (without meandering-less function) (420mm with meandering-less function is optional.) |
| Detectable material | Iron or stainless-steel ball (Φ0.3mm), stone, glass, hard bone, high density plastic, etc. *3 |
| Display unit | 15.6 inches-wide TFT color LCD (with touch panel) |
| Structure | Main unit/Base: All stainless-steel (SUS304) Protection Grade: Main unit equivalent to IP66 *4 |
| Pass line | 750±50mm |
| Max X-ray output | Tube voltage (Max.): 75kV, Tube current (Max.): 8.0mA (Max: 300W) |
| Operating environment | Temperature: 0 to 35℃, Humidity: 30 to 85%, No dew condensation allowed. (It is necessary to clean the filter periodically.) *5 |
| Weight | 240kg |
| Main power supply | AC100V±10%/AC200V±10%, 1.5kVA, 50/60Hz |
*1 Products that pass the inspectable range will be scanned.
*2 For other weight or conveyor speed, contact SYSTEM SQUARE INC.
*3 The detection sensitivity may vary depending on the type of inspection product and the operating environment.
*4 This waterproof standard may not apply when options are mounted.
*5 When the operating environment temperature exceeds 35℃, contact SYSTEM SQUARE INC.
* The cover to prevent the X-ray leak may be required at the inlet and outlet according to the length of inspection product.
* Options may be required in case that installation place has large temperature change and (or) high humidity, item to be inspected is too cold or hot.

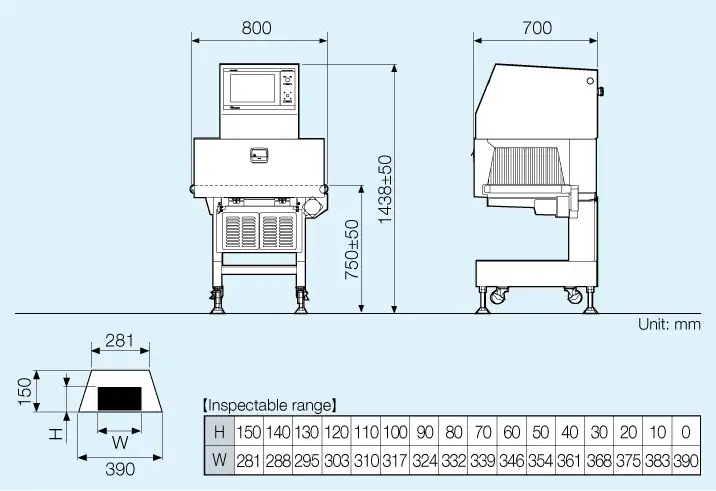

Appearance figure
* USB memory is optional.(Please use exclusive USB memory provided from SYSTEM SQUARE.)
