SX2044W Type

Energy saving and super-compact design. Optimal for inspection of aluminum packing products and aluminum deposition packing products, etc. Applicable to even industrial and consumable part applications.

SX2044W Type

Shape inspection

In addition to the foreign body inspection, the shape inspection can be performed at the same time.

Operation screens use images common to the metal detector. (META-HAWK 3)

Operators are not bewildered even when operating two aligned machines.

Incorrect inspection or hazardous work is prevented.

2044危険防止 説明Trapezoidal inspection port, that products are not flowed to the non-inspection area, prevents incorrect inspection.Illumination of the whole inspection port calls attention to operators during X-ray irradiation. (Patent pending)

Low running cost

Use of long-life X-ray generator makes it possible to reduce the running cost about 60%. ※1
The power consumption is cut by about 50%. ※1

※1 Comparison with our SX25 type

Other functions are also enhanced.

Quick startup from power ON. (Approx. 5 sec.)
Lightweight design ensures easy transportation for the maintenance work.
Overall height and depth are small, ensuring space saving.

Optional functions

Mask inspection function
Simple weight check function

Example of sensitivity comparison between X-ray inspection system and metal detector (Compared with the conventional company products)

specifications

D (non-waterproof) / W (waterproof)

Model sx2044w
Dimension of inspection product *1 W190mm×H100mm
Transport weight 5kg ※2
Transport belt speed 15~45m/min ※3
Belt width 220mm(without improper tracking-less function) (220mm with improper tracking-less function is optional.)
Detection sensitivity φ0.3mm iron or stainless ball, stone, hard bone, and high density plastic pieces, etc. *4
Display unit 12.1-inches are wide TFT color LCD (with touch panel)
Structure Main unit/Base: All-stainless (SUS304) Water-proof structure (Conveyor): IP66 or equivalen
Pass line 750±30mm
Max X-ray output Tube voltage:40kV  Tube current:1.5mA (60W)
Operating environment Temperature: 0 to 37℃, Humidity: 30 to 85%, No dew condensation allowed.
(It is necessary to clean the filter periodically.)
Safety X-ray leak dose ratio, 1μSv/h or less
Weight 80kg
Power supply AC100V±10%/AC200V±10%  550VA  50/60Hz ※5

* 1 For details, see the drawing of the possible inspection range.
* 2 For 10kg-applicable models, contact System Square Inc.
* 3 For other transport speed models, contact System Square Inc.
* 4 The detection capacity may vary depending on the type of inspection product and the operating environment.
* 5 Power consumption is different when cooling unit is equipped.
* The detection sensitivity to be used actually may vary depending on the physical properties (contents and shape, etc.) of inspection product and/or the operating environment.
* The cover to prevent the X-ray leak may be required at the inlet and outlet according to the length of inspection product.
* The contents of the items described above are subject to change without prior notice due to continual improvement.

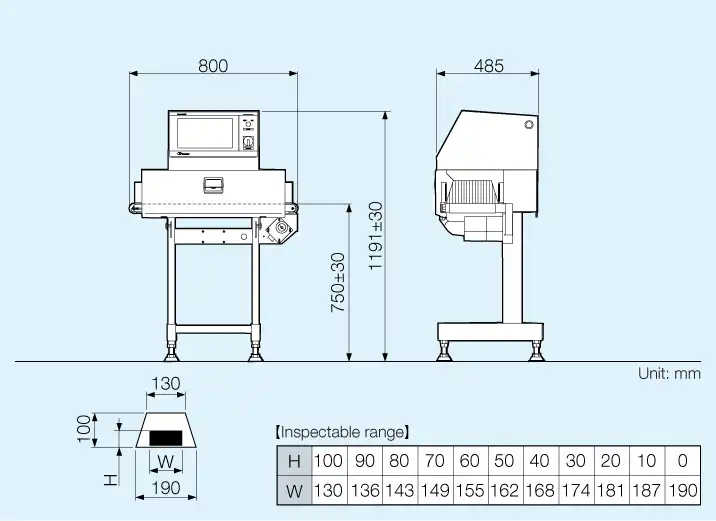

appearance figure
