SX53 Type

Applicable to inspection of large products.

SX53 Type

Specifications

W (waterproof)

Model SX53106W SX5376W
Dimension of inspection product *1 Maximum passage width 519mm,
Maximum passage height 220mm
Maximum passage width 521mm,
Maximum passage height 220mm
Weight capacity 20kg
Transport belt speed 10-30m/min *2
Belt width 570mm
Detection sensitivity φ0.5mm iron or stainless ball, stone, hard bone,and high density plastic pieces, etc. *3
Display unit 12.1-inches are wide TFT color LCD (with touch panel)
Structure Main unit/Base: All-stainless (SUS304)
Conveyor: IP66 or equivalent
Pass line 750±50mm
Max. X-ray output Tube voltage: 100kV
Tube current: 5.0mA
(Max: 300W)
Tube voltage: 75kV
Tube current: 8.0mA
(Max: 300W)
Operating environment   Temperature: 0 to 35℃, Humidity: 30 to 85%, No dew condensation allowed.
(It is necessary to clean the filter periodically.)
Weight 530kg
Main power supply AC100V±10% *4 1.5kVA 50/60Hz *5 *6

* 1 For details, see the drawing of the possible inspection range.
* 2 For other transport speed models, contact System Square Inc.
* 3 The detection capacity may vary depending on the type of inspection product and the operating environment.
* 4 AC200V Plus or minus 10% specifications are also available as optional specifications.
* 5 Power consumption is different when cooling unit is equipped.
* 6 Power supply specification is AC200V±10% when cooling unit is equipped.
* The detection sensitivity to be used actually may vary depending on the physical properties (contents and shape, etc.) of inspection product and/or the operating environment.
* The cover to prevent the X-ray leak may be required at the inlet and outlet according to the length of inspection product.
* The contents of the items described above are subject to change without prior notice due to continual improvement.

Appearance figure

図面53英語

Product List

LINE UP
SX2353HW / SX3873HW Both high sensitivity and high stability achieved with the new X-ray sensor

SX2353HW / SX3873HW

Both high sensitivity and high stability achieved with the new X-ray sensor
SX2554HW / SX4074HW Highly stable relative mass inspection achieved with a new X-ray sensor

SX2554HW / SX4074HW

Highly stable relative mass inspection achieved with a new X-ray sensor

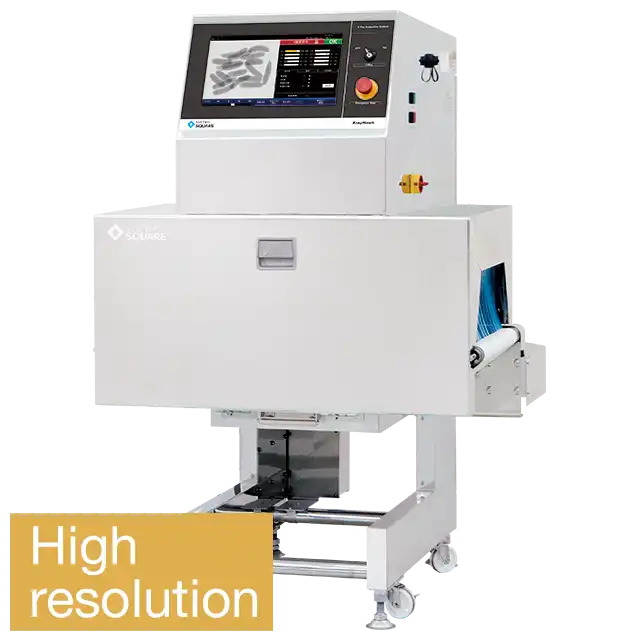

SX3671MW Foreign objects undetectable by the conventional X-ray can be detected!
