SX2353HW / SX3873HW

Both high sensitivity and high stability achieved with the new X-ray sensor

SX2353HW / SX3873HW
Both high sensitivity and high stability achieved with the new X-ray sensor

【 Completely waterproof 】

High sensitivity achieved with the new original X-ray sensor 3H

In the system with the new X-ray sensor (SX2353HW), a further high-sensitivity inspection has been achieved compared with the SYSTEM SQUARE standard system (SX2554W). By comparing the inspection images, it can be confirmed that the new image is sharper.

sx2353hw-sx3873hw_figure

More stable high sensitivity achieved

With the system with the new X-ray sensor (SX2353HW), you can detect foreign objects more strongly. As a result, you can make the high-sensitivity inspection stably. In the in-house test, the new system has detected the test pieces smaller by one size compared with the conventional system (SX2554W).

sx2353hw-sx3873hw_fig01sx2353hw-sx3873hw_fig02sx2353hw-sx3873hw_fig03sx2353hw-sx3873hw_fig04sx2353hw-sx3873hw_fig05sx2353hw-sx3873hw_fig06

Specifications

Model SX2353HW SX3873HW
Dimension of inspection product *1 Maximum passage width 220mm,
Maximum passage height 120mm
Maximum passage width 370mm,
Maximum passage height 150mm
Weight capacity 5kg *2
Transport belt speed 15-45m/min *3
Belt width 270mm
(without meandering-less function)
(270mm with meandering-less function is optional.)
420mm
(without meandering-less function)
(420mm with meandering-less function is optional.)
Detection sensitivity φ0.2mm iron or stainless ball, stone, glass, hard bone, and high density plastic pieces, etc. *4
Display unit 12.1 inches-wide TFT color LCD (with touch panel)
Structure Main unit/Base: All-stainless (SUS304)
Water-proof structure: IP66 or equivalent *5
Pass line 750±50mm
Max. X-ray output Tube voltage: 50kV
Tube current: 5.0mA
(Max: 150W)
Tube voltage: 75kV
Tube current: 8.0mA
(Max: 300W)
Operating environment Temperature: 0 to 35℃, Humidity: 30 to 85%, No dew condensation allowed.
(It is necessary to clean the filter periodically.) *6
Weight 138kg 185kg
Main power supply AC100V±10%/AC200V±10%
1.0kVA 50/60Hz
AC100V±10%/AC200V±10%
1.5kVA 50/60Hz

*1 According to the product length, the cover may be needed.
*2 For other weight, contact System Square Inc.
*3 For other transport belt speed, contact System Square Inc.
*4 The detection capability may vary depending on the inspection product and operating environment.
*5 This waterproof standard may not apply when options are mounted.
*6 When the operating environment temperature exceeds 35°C, contact System Square Inc.

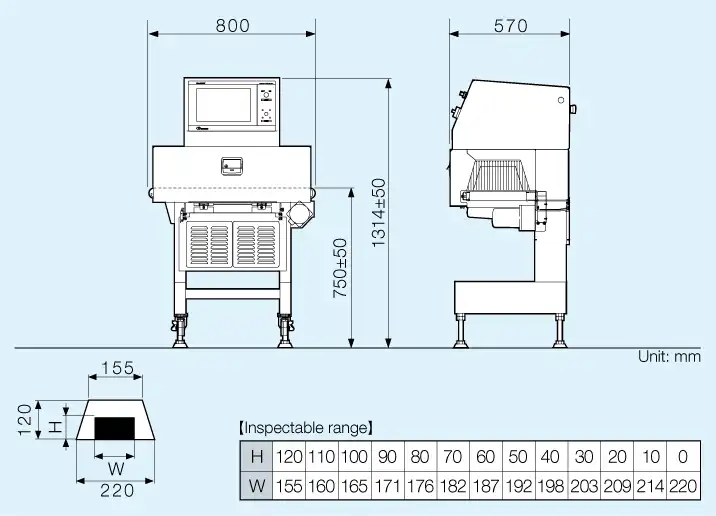

SX2353HW appearance figure

SX2353HW

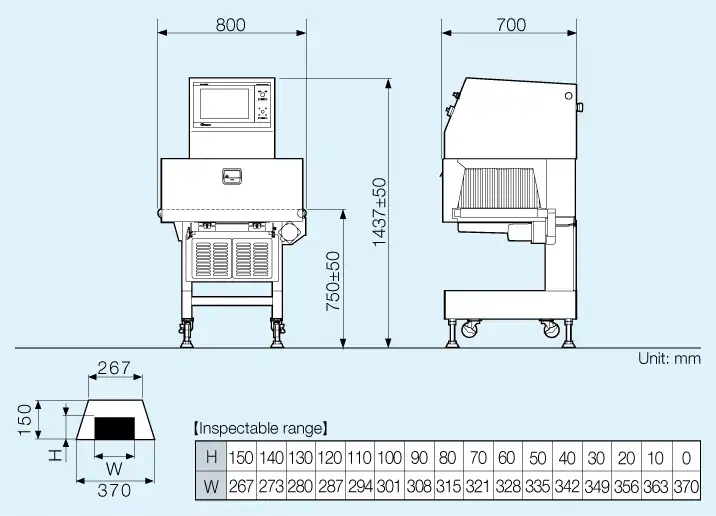

SX3873HW appearance figure
