SX2-2554W

Completely different from existing X-ray inspection systems! Innovative waterproof and dustproof function is achieved!

SX2-2554W
Completely different from existing X-ray inspection systems! Innovative waterproof and dustproof function is achieved!

【 Completely waterproof 】

Operable in various environments

Overall system conforms to IP66. No cooler is needed and the system can be operated in a wide variety of environments.

Sealed cooling system is utilized

As the complete sealing is achieved, damages to the system units due to moisture or dust are reduced. The structure that can be operated more safely is achieved.

Comparison of waterproof range

Unlike previous models, systemic waterproof.

Compact design and low price

As the cooler does not need to be installed, more compact design and lower price are achieved.

Specifications

W (waterproof)

Model SX2-2554W
Dimension of inspection product *1 Maximum passage width 240mm,
Maximum passage height 120mm
Transport weight 5kg *2
Transport belt speed 15-45m/min *3
Belt width 270mm(without meandering-less function)
(270mm with meandering-less function is optional.)
Detection sensitivity φ0.3mm iron or stainless ball, stone, hard bone, and high density plastic pieces, etc. *4
Display unit 15.6 inches-wide TFT color LCD (with touch panel)
Structure Main unit/Base: All-stainless (SUS304)
Water-proof structure: IP66 or equivalent *5
Pass line 750±50mm
Max X-ray output Tube voltage: 50kV Tube current: 5.0mA (Max: 150W)
Operating environment Temperature: 0 to 35℃, Humidity: 30 to 85%, No dew condensation allowed.
(It is necessary to clean the filter periodically.) *6
Weight 160kg
Main power supply AC100V±10%/AC200V±10% 1.0kVA 50/60Hz

*1 According to the product length, the cover may be required.
*2 For other weight, contact System Square Inc.
*3 For other transport belt speed, contact System Square Inc.
*4 The detection capability may vary depending on the inspection product and operating environment.
*5 This waterproof standard may not apply when options are mounted.
*6 When the operating environment temperature exceeds 35℃, contact System Square Inc.

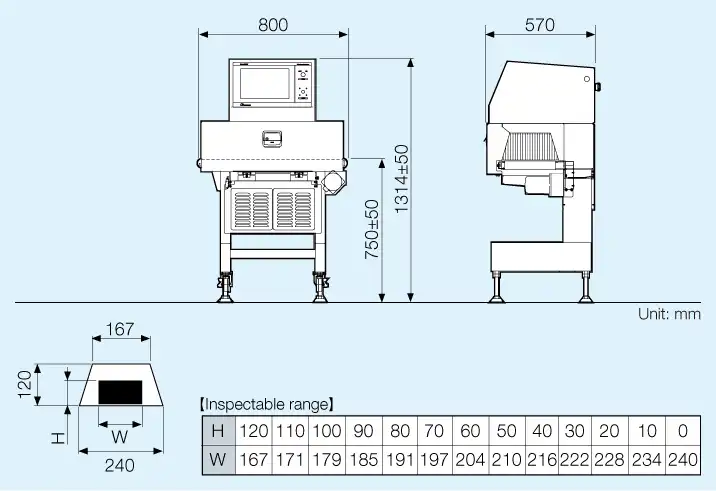

Appearance figure

SX2-2554W
* Printer USB memory is optional.(Please use exclusive USB memory provided from SYSTEM SQUARE.)
