SD3P-60 Type

For inspection of products contained in large boxes and bags, such as rice, wheat flour, and cereals, etc

SD3P-60 Type
For inspection of products contained in large boxes and bags, such as rice, wheat flour, and cereals, etc

Applicable to a passage width of up to 60 cm.
*Conveyor belt easy attach and remove system is option.

Specifications

D (non-waterproof) / W (waterproof)

Model SD3P-XXXXD/W
6007 6009 6011 6014 6017
Maximum passage width(mm) 600
Maximum passage height(mm) 70 90 110 140 170
Detection
sensitivity(mm)
Fe φ0.5 φ0.55 φ0.55 φ0.6 φ0.7
SUS
304
φ1.0 φ1.1 φ1.2 φ1.3 φ1.5
Conveyor speed 24m/min (50Hz)
Conveyor size 1500mm (length)×500mm (belt width)
Upon detection of metal Belt stopped, buzzer warning or automatic sorting (option)
Weight capacity 20kg(In the case of Three-phase AC200V, it is possible to cope under 30kg)
Operating environment Temperature: 0 to 40℃, Humidity: 30 to 75%, No dew condensation allowed.
Main power supply AC100V±10% / AC200V±10%, 50 / 60Hz, 350VA
or Three-phase AC200V±10%, 50 / 60Hz, 550VA(up to 30kg)
Weight(kg) 186 187 188 194 199
Model SD3P-XXXXD/W
6020 6025 6030 6035
Maximum passage width(mm) 600
Maximum passage height(mm) 200 250 300 350
Detection
sensitivity(mm)
Fe φ0.8 φ0.8 φ1.0 φ1.2
SUS
304
φ1.5 φ1.5 φ1.7 φ2.0
Conveyor speed 24m/min (50Hz)
Conveyor size 1500mm (length)×500mm (belt width)
Upon detection of metal Belt stopped, buzzer warning or automatic sorting (option)
Weight capacity 20kg(In the case of Three-phase AC200V, it is possible to cope under 30kg)
Operating environment Temperature: 0 to 40℃, Humidity: 30 to 75%, No dew condensation allowed.
Main power supply AC100V±10% / AC200V±10%, 50 / 60Hz, 350VA
or Three-phase AC200V±10%, 50 / 60Hz, 550VA(up to20 30kg)
Weight(kg) 202 204 210 216

The detection sensitivity represent the values when only a test piece is fed over the belt surface.
The detection sensitivity depends on the product and/or operating environment.
Please make sure that something such as products are not going to hit the inside of the aperture.
The specifications are subject to change without prior notice due to improvement.

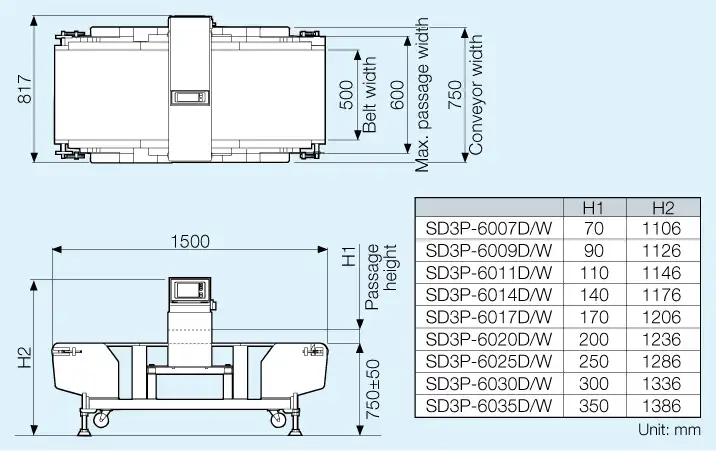

Appearance figure
