SD3P-80 Type

For inspection of larger box and larger bag products

SD3P-80 Type
For inspection of larger box and larger bag products

Specifications

D (non-waterproof) / W (waterproof)

Model SD3P-XXXXXD/W
8014 8017 8020 8025 8030 8035
Maximum passage width 800mm
Maximum passage height 140mm 170mm 200mm 250mm 300mm 350mm
Detection
sensitivity
Fe φ0.8mm φ0.9mm φ1.0mm φ1.2mm φ1.5mm φ2.0mm
SUS304 φ1.5mm φ1.5mm φ1.5mm φ2.0mm φ2.4mm φ2.5mm
Transport belt speed 24m/min (50Hz)
Conveyor size 1500mm (length)×700mm (belt width)
Upon detection of metal Belt stopped, buzzer warning or automatic sorting (option)
Weight capacity 20kg(In the case of Three-phase AC200V, it is possible to cope under 30kg)
Main power supply AC100V±10% / AC200V±10%, 50 / 60Hz, 350VA
or Three-phase AC200V±10%, 50 / 60Hz, 550VA(up to 30kg)
Weight 223kg 226kg 229kg 237kg 245kg 253kg

The values for detection sensitivity represent the values when only a test piece is fed over the belt surface.
Values may vary depending on the product being handled and operating environment.
The specifications are subject to change without prior notice due to improvement.

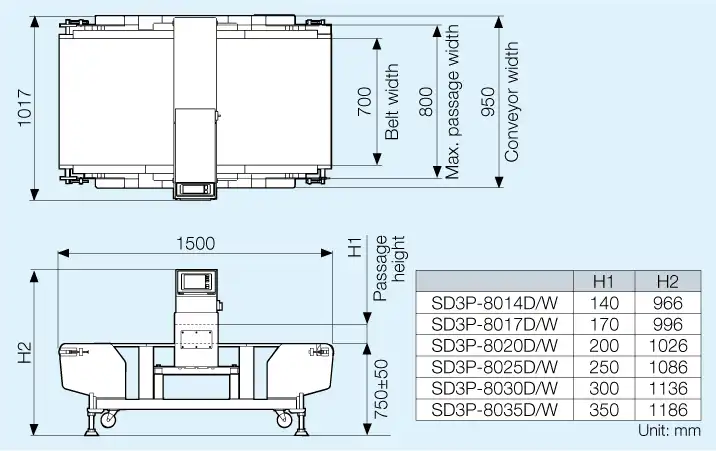

Appearance figure

Appearance figure SD3P-80type
