Pipe transfer type metal detectors

For inspection of paste or fluid products, such as miso, minced meat, or jam.

Pipe transfer type metal detectors
For inspection of paste or fluid products, such as miso, minced meat, or jam.

Pipe is detachable with one-touch operation and capable of easy cleaning.
*Elbow for NG product discharge is option.

Specifications

D (non-waterproof) / W (waterproof)

Model SD3P-100RW-XXX
1.0S 1.5S 2.0S 2.5S 3.0S
Detection
sensitivity(mm)
Fe φ0.4
SUS
304
φ0.7
Inner diameter of coil φ100mm
Pipe size(inch) 1.0 1.5 2.0 2.5 3.0
Height of inlet/outlet 750mm
Ferrule shape IDFferrule
Maximum passage flow rate(ℓ/h)※1 500 1,200 2,000 4,500 7,000
Withstand pressure(Mpa)※2 0.8 0.7 0.5 0.5 0.5
Heatproof temperature
※2
80℃
Sorting method Air driven 3-way ball valve
Ball valve operation Operating temperature range: -5℃ to 95℃, Max. operating pressure: 0.7 MPa, IP55
Main power supply AC100 – 240V±10%, 50 / 60Hz, 120VA
Air supply source 0.4-0.7Mpa
Accessory Hook spanner, clamp
Operating environment Temperature: 0 to 40℃, Humidity: 30 to 75%, No dew condensation allowed.
Weight(kg) 91 94 100 107 111

*1:The flow rate may drop as the selection valve change-over time is needed depending on the viscosity of the fluid to be used.
*2:This shows reference values in the case of 20℃. The withstand pressure may depend on the operating temperature. Contact System Square for further information.

The detection sensitivity represent the values when only a test piece is fed over the belt surface.
The detection sensitivity depends on the product and/or operating environment.
Please make sure that something such as products are not going to hit the inside of the aperture.
The specifications are subject to change without prior notice due to improvement.

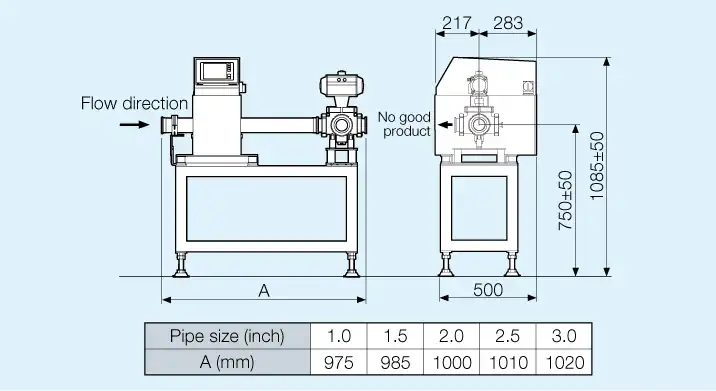

Appearance figure
