Circular type metal detector

For inspection of rice,wheat flour, bread crumbs, snack food, cereals, and pellets, etc.

Circular type metal detector
For inspection of rice,wheat flour, bread crumbs, snack food, cereals, and pellets, etc.

This model is suitable for inspection of products that drop naturally. A compact coil can be assembled into the pipe line.

Specifications

D (non-waterproof) / W (waterproof)

Model SD3P-XXXCD/W
080 100 130 150 180 200 250
Coil diameter（mm） φ80 φ100 φ130 φ150 φ180 φ200 φ250
Maximum passage width（Reference value）（mm） φ60 φ80 φ110 φ130 φ160 φ180 φ230
Detection
sensitivity（mm）		 Fe φ0.4 φ0.4 φ0.5 φ0.5 φ0.6 φ0.7 φ0.8
SUS304 φ0.7 φ0.7 φ0.8 φ0.8 φ1.0 φ1.2 φ1.5
Amount of processing (Reference value) Minute powder 1t/h 2t/h 3.5t/h 5t/h 7t/h 9t/h 15t/h
Soybean 2t/h 4t/h 7t/h 10t/h 14t/h 18t/h 30t/h
Upon detection of metal Buzzer warning, detection signal
Operating environment Temperature: 0 to 40℃, Humidity: 30 to 75%, No dew condensation allowed.
Power requirements AC100 – 240V±10%、50 / 60Hz、120VA
Weight（kg） 35 37 45 50 52 53 58

The detection sensitivity represent the values when only a test piece is fed over the belt surface.
The detection sensitivity depends on the product and/or operating environment.
Please make sure that something such as products are not going to hit the inside of the aperture.
The specifications are subject to change without prior notice due to improvement.

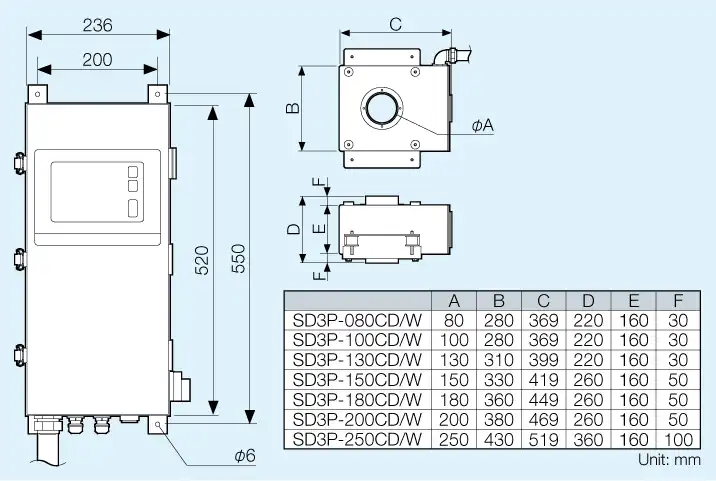

Appearance figure
